Atmos Odin SD

Designed for deployment where no infrastructure is available

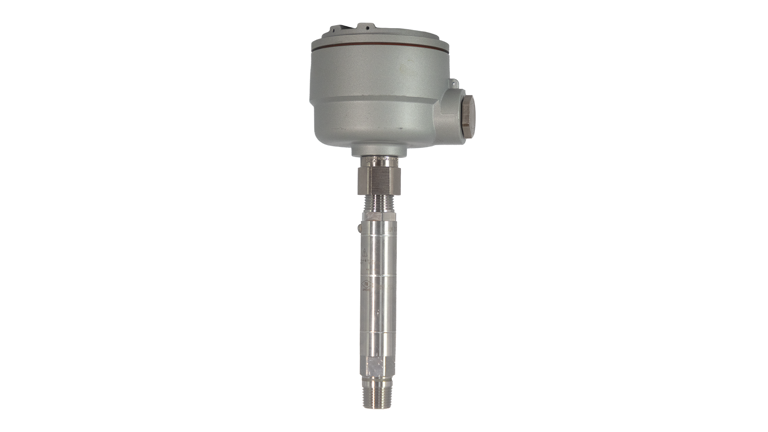

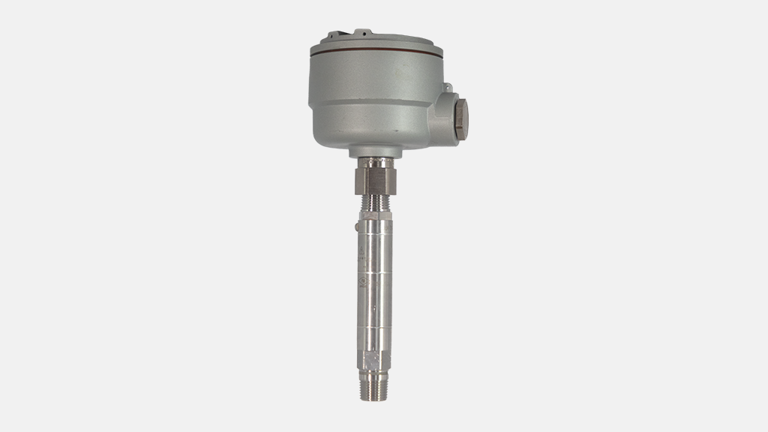

Odin SD Main

Offline leak and theft detection instrumentation where there is no power and communications

  • Integrated pressure transmitter and battery
  • Data stored on local SD card
  • Data can be analyzed by Atmos Wave software and trained Atmos Engineers
  • Ideal for conducting sensitivity studies, leak trials, theft analysis and leak detection and routine assessment of pipeline’s condition

This product is currently a proof of concept under development and is therefore subject to change.

Technical specification

  • 3.6 VDC integrated, replaceable battery
  • 60 Hz data acquisition
  • Integrated pressure transmitter with half NPT standard connection or alternative connections can be provided
  • Removable SD card storage
  • -20 C to +60 C temperature range
  • Onboard memory for up to 6 weeks on a single battery change
  • Onboard GPS allows for accurate correlation of pipeline events
