- Visual pressure readings via pressure gauge for diagnostic purposes.
- Ergonomically designed based on industry standard (EI1584) coupler dimensions.
- Ensures operators know how to respond to a real leak
- Easily portable in a PELI™ case

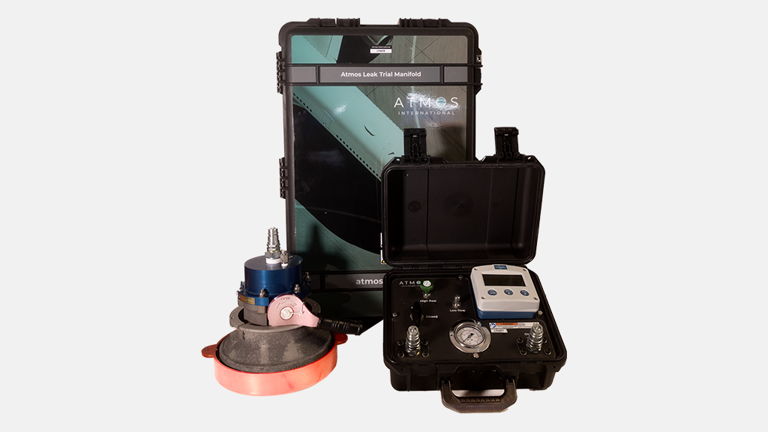

Atmos Leak Trial Manifold
Leak detection system for airport fuel hydrants
Leak trial manifold capable of accurate, low-flow measurement in hazardous areas to verify a tightness monitoring system on an airport fuel hydrant system.
Technical specification
- Covers segments up to 5000 m3 at 0.02l/h/m3 minimum detectable leak rate
- Maximum Allowable Working Pressure: 25 Bar
- Flow rate: 0.5 - 100 L/h
- Weight: 34 kg All equipment contained within single PELI™ case
- Inlet connection - 4 inches EI1584 coupler
- Outlet - 1 m hose with ball valve and barb
- Fine and course flow control valves
- Meter accuracy +/- 0.5% of flow rate
- Flow rate and cumulative display options
- ATEX / IECEx approved flow meter
- Panel mounted pressure gauge for diagnostics
