Hardware that supports leak detection across the whole water network

Only the most effective pipeline leak detection solutions identify both newly forming and existing leaks across all areas of the water and wastewater networks.

Our range of Atmos water hardware focuses on high resolution and high speed data acquisition, multiple communications options including 4G and radio link and rapid deployment.

Complimented by our field proven software solutions, Atmos water hardware is designed to detect leaks, bursts or pressure transients across the whole water network.

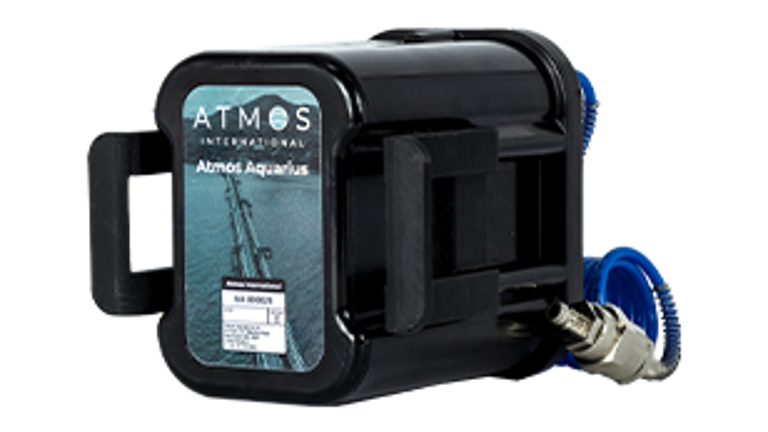

Atmos Aquarius

Battery powered instrumentation for your pipeline as a combined leak detection system and telemetry unit designed for trunk main water pipeline deployment with Edge processing

Key Features: Edge processing, 60 Hz data sampling, 4G and radio link communication, 5-10 years battery, multimethod data acquisition

Find out more

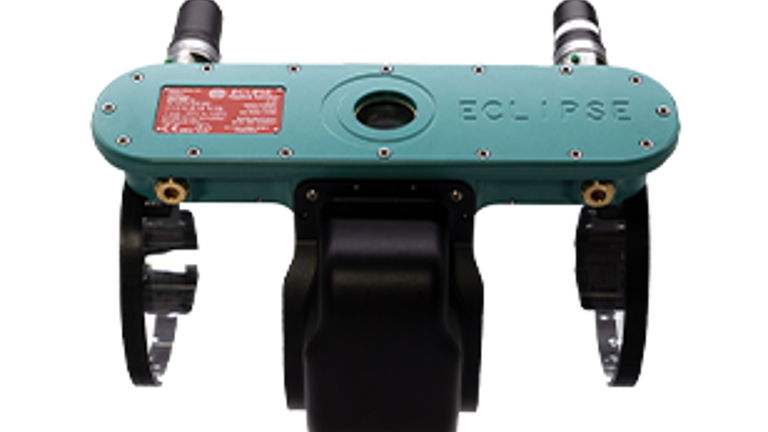

Atmos Eclipse

Integrating non-intrusive flow, pressure and temperature and communications to provide sensitive, real-time, pipeline leak and theft detection anywhere it is needed

Key Features: 60 Hz data acquisition rate, 90-250V AC line, solar power, 24V DC, ATEX certified, can be buried to a depth of 2 meters

Find out more

Atmos Sentinel models

Cost effective burst detection and transient monitoring for rising sewer mains with optional inbuilt communications and Edge processing

Key Features: 3.6V DC replaceable battery, solar and main power options, 60-480 Hz data acquisition rate, optional cellular and radio link communication

Find out more

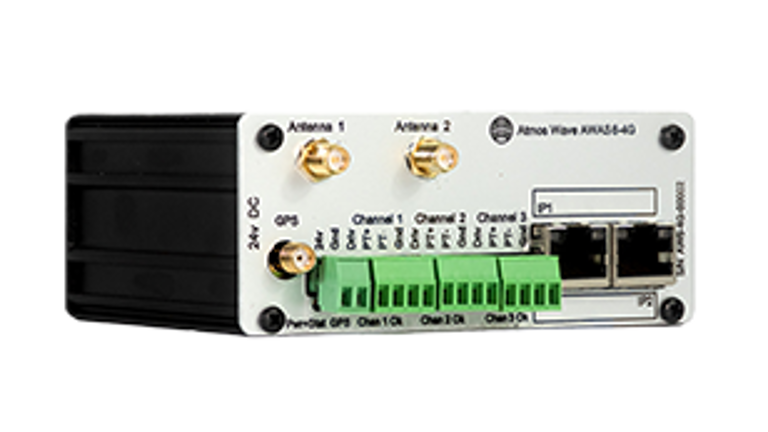

Atmos AWAS 6 4G

High speed data logger with built in 4G capability, enabling data communications for leak detection analysis

Key Features: 4G communications, GPS time stamped data, 4.5 hours data storage, 60 Hz maximum data acquisition rate

Find out more

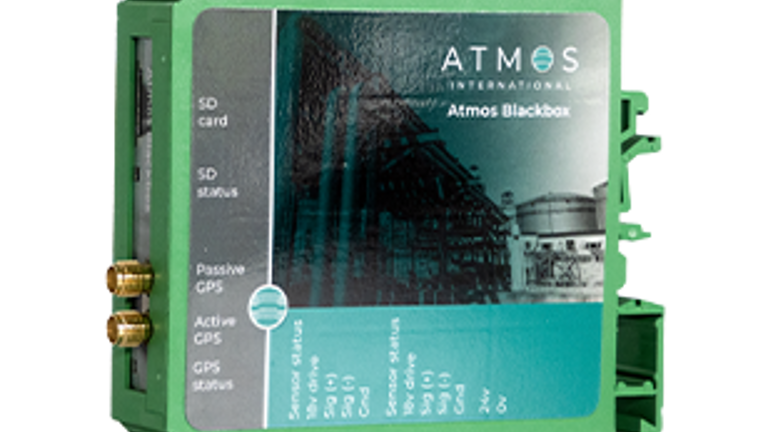

Atmos Black Box

Offline monitoring, recording and locally storing pipeline data without utilizing communications until a time when it is needed for the investigation of pipeline events such as leaks, thefts and other pressure transients

Key Features: 60 Hz data acquisition, 4-20 mA connection for two sensors, SD card stores data for approximately a rolling six month period, data viewer available

Find out more
