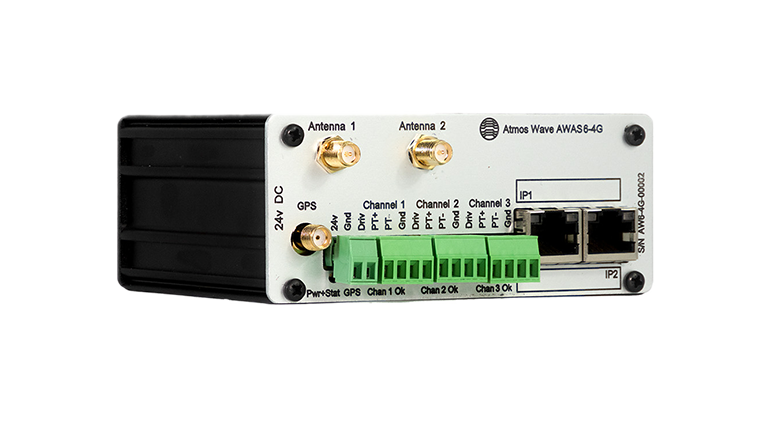

Atmos AWAS 6 4G

Built in 4G capability enabling data communications for leak detection analysis

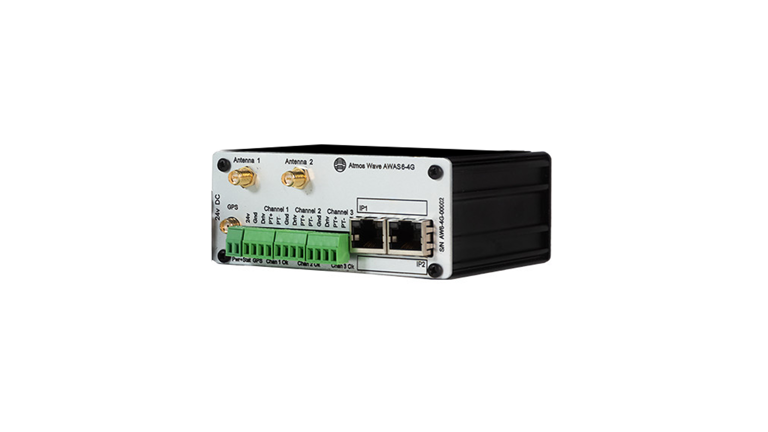

Atmos AWAS Alternative Angle

3 Channel, high-speed, high-resolution, pressure data acquisition unit with 4G option

A high speed data logger that connects into existing current loops with a low voltage drop. The logger can connect to existing pressure and flow signals or into instrumentation provided by Atmos. The logger digitizes the analogue signal at a high frequency (60Hz) with each piece of data being GPS time stamped.

This product is currently under development and is therefore subject to change.

Technical specification

  • Pressure input channels: 4-20 mA channels x3
  • Input impedance: 50 Ω
  • Maximum data acquisition rate: 60 Hz
  • 4G communication
  • Global LTA/3G/GSM coverage: bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 18, 19, 20, 26, 28
  • GPS time-stamped data
  • Data communication: TCP/IP ports and 4G communication
  • Power input: 20V DC (min) - 24V DC (max), 6 W
  • Industrial environmental temperature range: -40 C to +85 C
  • 95% relative humidity - non-condensing
  • Conformal coating for humidity and corrosion resistance. ISA 71.04
  • Diagnostic system status LEDs
  • 4.5 hours of local data storage protects data during a communication failure
