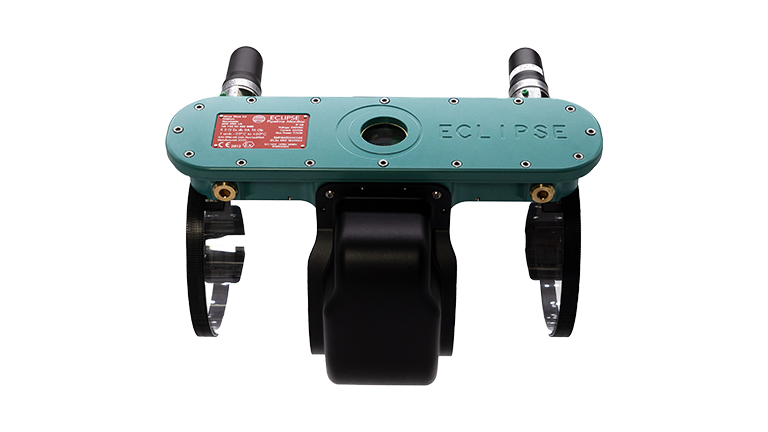

Atmos Eclipse

Essential non-intrusive instrumentation as part of your leak detection system

How do you provide a leak or theft detection system to a pipeline which has limitations such as:

  • Lack of communication
  • Lack of power
  • Lack of instrumentation
  • Lack of housing for the equipment?

Atmos Eclipse provides essential instrumentation as part of a leak detection system in one ATEX package that’s easy to install and designed for rapid deployment. Working with Atmos Wave Flow, Atmos Eclipse improves leak detection performance, including sensitivity, response time and leak location accuracy.

Technical specification

  • Voltage: 24V DC / 90-250V AC
  • Power: 7.2 W
  • Operating temperature: -20 C to +60 C
  • ATEX/IECEx: Zone 1 Gas IIA, T6
  • Ingress: IP66 (IP68 options available on request)
  • Material: Aluminium 6082 t6
  • Coating: Epoxy
  • Communications: 4G, TCP/IP, 862-928 MHz RF Link or RS485
  • RF output: <1-2 W
  • Sample rate: 60 Hz
  • Pipe diameters: 4 inch to 48 inch (alternative installation configurations available for pipelines >48 inch)
  • Cable entries: 4 x M20
  • Weight: 6.6 kg
